Accelerator beamline layout in CadQuery

A. Petrenko (Novosibirsk, 2024)

import numpy as np
import pandas as pd
import os, glob
import cadquery as cq
from cadquery import exporters
from IPython.display import SVG
from io import StringIO

if not os.path.exists("results/"): os.mkdir("results/")
# clear the "results" folder:
for f in glob.glob('results/*'): os.remove(f)

with open("machine.lte", "r") as f:
    print(f.read())

CAV     : RFCA,  L=0.15, VOLT=200e3,FREQ=700e6,PHASE=0.00106193
D5      : DRIFT, L=0.21
QD1     : QUAD, L=0.18, K1=-7.05620223
D6      : DRIFT, L=0.12
QF1     : QUAD, L=0.18, K1=13.7964021
QF2     : QUAD, L=0.18, K1=12.0670253
QF3     : QUAD, L=0.18, K1=13.7964021
D7      : DRIFT, L=0.22
QD2     : QUAD, L=0.2, K1=-3.3450147
D8      : DRIFT, L=1.08
QD3     : QUAD, L=0.2, K1=-9.16643151
D9      : DRIFT, L=0.1
QF4     : QUAD, L=0.2, K1=8.54245738
D10     : DRIFT, L=0.5575

DB      : SBEND, L=0.88, ANGLE=0.785399, K1=-2.3515579

D1      : DRIFT, L=0.18
D2      : DRIFT, L=0.105
D3      : DRIFT, L=0.155
D4      : DRIFT, L=0.07

SZ1     : SEXTUPOL, L=0.08, K2=-250
SZ2     : SEXTUPOL, L=0.08, K2=-250
SX1     : SEXTUPOL, L=0.08, K2=160
SX2     : SEXTUPOL, L=0.08, K2=160

BEND1 : LINE=(D1,DB,D2,SZ1,D3,SX1,D4)
BEND2 : LINE=(D4,SX2,D3,SZ2,D2,DB,D1)

DAMP    : LINE=(CAV,D5,QD1,D6,QF1,BEND1,QF2,BEND2,QF3,D7, &
                 QD2,D8,QD3,D9,QF4,D10)

! machine : LINE=(DAMP,-DAMP,DAMP,-DAMP)
 machine : LINE=(-DAMP,DAMP,-DAMP,DAMP)

out = !elegant floor_coordinates.ele
print("\n".join(out[-20:]))

Updating floor coordinates
tracking step 1
generating bunch 1
tracking 1 particles
23 Nov 25 16:20:13: This step establishes energy profile vs s (fiducial beam).
23 Nov 25 16:20:13: Rf phases/references reset.
Post-tracking output completed.
Tracking step completed   ET:  00:00:0.009 CP:    0.00 BIO:0 DIO:0 PF:0 MEM:7094


Saving lattice parameters to results/parameters.sdds...done.
Finished tracking.
End of input data encountered.
statistics:    ET:  00:00:0.016 CP:    0.01 BIO:0 DIO:0 PF:0 MEM:7183
=====================================================================================
Thanks for using elegant.  Please cite the following reference in your publications:
  M. Borland, "elegant: A Flexible SDDS-Compliant Code for Accelerator Simulation,"
  Advanced Photon Source LS-287, September 2000.
If you use a modified version, please indicate this in all publications.
=====================================================================================

# read SDDS-file into pandas dataframe
def sdds2df(sdds_file, columns="all"):
    if columns=="all":
        columns = !sddsquery $sdds_file -columnlist
    col_str = "-col=" + ",".join(columns)
    out = !sdds2stream $sdds_file $col_str -pipe=out
    DATA = StringIO("\n".join(out))
    df = pd.read_csv(DATA, names=columns, sep=r'\s+')
    return df

def element_par(ElementName, ElementParameter, ElementOccurence=1, filename="results/parameters.sdds"):
    out = !sddsprocess $filename -pipe=out \
        -match=col,ElementName=$ElementName \
        -match=col,ElementParameter=$ElementParameter \
        -filter=col,ElementOccurence,$ElementOccurence,$ElementOccurence | \
     sdds2stream -pipe=in -col=ParameterValue

    try:
        return float(out[0])
    except ValueError:
        return out[0]

#element_par("DPL101","ANGLE")*180/np.pi

floor_file = "results/xyz.sdds"
df = sdds2df(floor_file)

df.head(3)

	s	ds	Z	ElementName	ElementOccurence	ElementType	NextElementName	NextElementType
0	0.0000	0.0000	0.0000	_BEG_	1	MARK	QF4	MARK
1	0.5575	0.5575	0.5575	D10	1	DRIF	QF4	QUAD
2	0.7575	0.2000	0.7575	QF4	1	QUAD	D9	DRIF

df.tail(10)

	s	ds	X	Z	theta	ElementName	ElementOccurence	ElementType	NextElementName	NextElementType
103	24.5125	0.8800	1.952624e-05	-2.91748	-0.000007	DB	8	SBEN	D1	DRIF
104	24.6925	0.1800	1.832153e-05	-2.73748	-0.000007	D1	8	DRIF	QF3	QUAD
105	24.8725	0.1800	1.711682e-05	-2.55748	-0.000007	QF3	4	QUAD	D7	DRIF
106	25.0925	0.2200	1.564440e-05	-2.33748	-0.000007	D7	4	DRIF	QD2	QUAD
107	25.2925	0.2000	1.430584e-05	-2.13748	-0.000007	QD2	4	QUAD	D8	DRIF
108	26.3725	1.0800	7.077591e-06	-1.05748	-0.000007	D8	4	DRIF	QD3	QUAD
109	26.5725	0.2000	5.739027e-06	-0.85748	-0.000007	QD3	4	QUAD	D9	DRIF
110	26.6725	0.1000	5.069745e-06	-0.75748	-0.000007	D9	4	DRIF	QF4	QUAD
111	26.8725	0.2000	3.731181e-06	-0.55748	-0.000007	QF4	4	QUAD	D10	DRIF
112	27.4300	0.5575	-6.630707e-11	0.00002	-0.000007	D10	4	DRIF	_END_	MARK

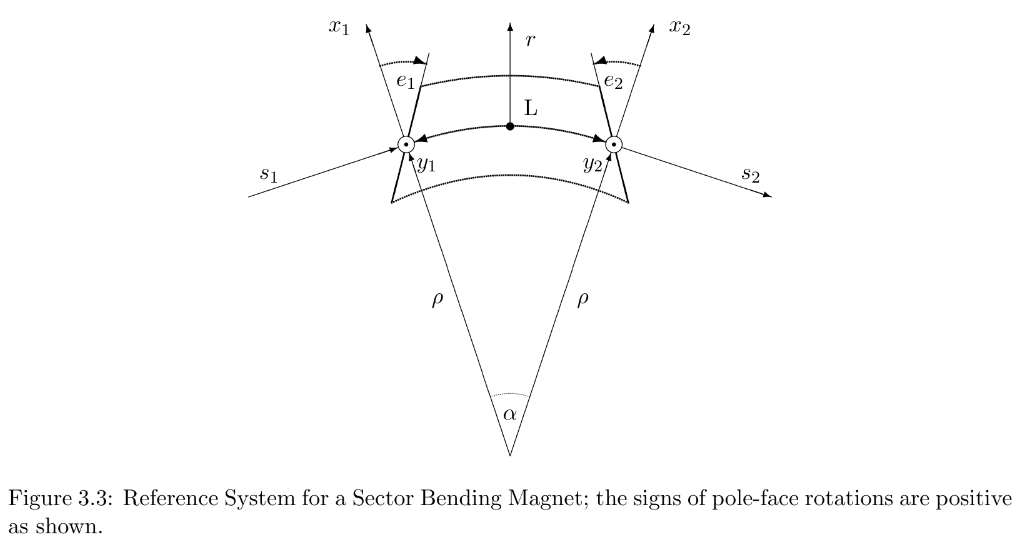

https://mad8.web.cern.ch/doc/mad8_user.pdf

#element_width  = 1.0 # m
element_width  = 0.4 # m

pipe_width = element_width*0.3
quad_width = element_width*1.2
sext_width = element_width*0.75

dipole_width = element_width*1.3
dipole_height = element_width*0.75

mm = 1e-3

def SBEND(angle=np.pi/4, L=1.0, e1=0, e2=0, width=dipole_width, height=dipole_height):
    w = width/mm # mm
    h = height/mm # mm
    R = (L/mm)/angle # mm
    # Orbit cirlce center
    z0 = 0; x0 = -R

    def point(r, phi):
        z = z0 - r*np.sin(phi)
        x = x0 + r*np.cos(phi)
        return z, x

    #phi = e2 - np.arcsin(R*np.sin(e2)/(R + width/2)) # rad

    # e1=e2=0 case first:
    phi = e2 - np.arcsin(R*np.sin(e2)/(R + w/2)) # rad
    p1 = point(R+w/2, phi)

    phi = angle/2
    p2 = point(R+w/2, phi)

    phi = angle - ( e1 - np.arcsin(R*np.sin(e1)/(R + w/2)) ) # rad
    p3 = point(R+w/2, phi)

    phi = angle - ( e1 - np.arcsin(R*np.sin(e1)/(R - w/2)) ) # rad
    p4 = point(R-w/2, phi)

    phi = angle/2
    p5 = point(R-w/2, phi)

    phi = e2 - np.arcsin(R*np.sin(e2)/(R - w/2)) # rad
    p6 = point(R-w/2, phi)

    return (
        cq.Workplane("ZX")
        .lineTo(*p1)
        .threePointArc(p2, p3)
        .lineTo(*p4)
        .threePointArc(p5, p6)
        .close()
        .extrude(h)
        .translate((0, -h/2, 0))
    )

#bend = SBEND(angle=np.pi/8, L=1.0, e1=0, e2=np.pi/8)
bend = SBEND(angle=np.pi/8, L=1.0, e1=0, e2=0)

SVG(bend.toSvg())

svg

SVG(bend.toSvg(opts={"projectionDir": (0, 1, 0), "marginLeft": 10, "marginRight": 10}))

svg

def box(L=1.0, width=element_width, height=element_width):
    w = width/mm # mm
    h = height/mm # mm

    return (
        cq.Workplane("ZX")
        .lineTo(0,w/2)
        .lineTo(-L/mm,  w/2)
        .lineTo(-L/mm, -w/2)
        .lineTo(0, -w/2)
        .close()
        .extrude(h)
        .translate((0, -h/2, 0))
    )

def cylinder(L=1.0, D=element_width):
    return (
        cq.Workplane("XY")
        .circle(D/2/mm).extrude(L/mm)
        .translate((0, 0, -L/mm))
    )

SVG(cylinder().toSvg())

svg

def QUAD(L=1.0, width=quad_width):
    return box(L=L, width=width, height=width)

SVG(QUAD().toSvg())

svg

def SEXT(L=1.0, width=sext_width):
    return box(L=L, width=width, height=width)

#SVG(SEXT().toSvg())

#bend

assy = cq.Assembly()

opacity = 0.8

for index, row in df.iterrows():
    name = row.ElementName
    if row.ElementOccurence > 1: name = f"{row.ElementName}.{row.ElementOccurence}"
    L     = row.ds
    if row.ElementType.endswith("SBEN"):
        angle = element_par(row.ElementName, "ANGLE", ElementOccurence=row.ElementOccurence)
        e1    = element_par(row.ElementName, "E1",    ElementOccurence=row.ElementOccurence)
        e2    = element_par(row.ElementName, "E2",    ElementOccurence=row.ElementOccurence)
        print(f"SBEND: {name}: X={row.X:.3f}, Y={row.Y:.3f}, Z={row.Z:.3f}, L ={L:.3f}, angle={angle:.3f}, e1={e1:.3f}, e2={e2:.3f}")

        bend = SBEND(angle=angle, L=L, e1=e1, e2=e2)

        assy.add(
            bend,
            color=cq.Color(0, 1, 0, opacity),
            name=name,
            loc=cq.Location((row.X/mm, row.Y/mm, row.Z/mm), (0, 1, 0), 180*row.theta/np.pi)
        )
    elif row.ElementType.endswith("QUAD"):
        print(f"QUAD: {name}: X={row.X:.3f}, Y={row.Y:.3f}, Z={row.Z:.3f}, L ={L:.3f}")

        assy.add(
            QUAD(L=L),
            color=cq.Color(1, 165/255, 0, opacity),
            name=name,
            loc=cq.Location((row.X/mm, row.Y/mm, row.Z/mm), (0, 1, 0), 180*row.theta/np.pi)
        )
    elif row.ElementType.endswith("SEXT"):
        print(f"SEXT: {name}: X={row.X:.3f}, Y={row.Y:.3f}, Z={row.Z:.3f}, L ={L:.3f}")

        assy.add(
            SEXT(L=L),
            color=cq.Color(0, 0, 1, opacity),
            name=name,
            loc=cq.Location((row.X/mm, row.Y/mm, row.Z/mm), (0, 1, 0), 180*row.theta/np.pi)
        )
    elif row.ElementType == "DRIF":
        print(f"{row.ElementType}: {name}: X={row.X:.3f}, Y={row.Y:.3f}, Z={row.Z:.3f}, L ={L:.3f}")
        assy.add(
            cylinder(L=L, D=pipe_width),
            color=cq.Color(0.8, 0.8, 0.8, opacity),
            name=name,
            loc=cq.Location((row.X/mm, row.Y/mm, row.Z/mm), (0, 1, 0), 180*row.theta/np.pi)
        )
    elif row.ElementType == "RFCA" and L!=0:
        print(f"{row.ElementType}: {name}: X={row.X:.3f}, Y={row.Y:.3f}, Z={row.Z:.3f}, L ={L:.3f}")
        assy.add(
            cylinder(L=L),
            color=cq.Color(1.0, 0, 0, opacity),
            name=name,
            loc=cq.Location((row.X/mm, row.Y/mm, row.Z/mm), (0, 1, 0), 180*row.theta/np.pi)
        )
    elif L!=0:
        print(f"{row.ElementType}: {name}: X={row.X:.3f}, Y={row.Y:.3f}, Z={row.Z:.3f}, L ={L:.3f}")
        assy.add(
            box(L=L),
            color=cq.Color(0, 0, 0, opacity),
            name=name,
            loc=cq.Location((row.X/mm, row.Y/mm, row.Z/mm), (0, 1, 0), 180*row.theta/np.pi)
        )

DRIF: D10: X=0.000, Y=0.000, Z=0.557, L =0.557
QUAD: QF4: X=0.000, Y=0.000, Z=0.758, L =0.200
DRIF: D9: X=0.000, Y=0.000, Z=0.858, L =0.100
QUAD: QD3: X=0.000, Y=0.000, Z=1.058, L =0.200
DRIF: D8: X=0.000, Y=0.000, Z=2.138, L =1.080
QUAD: QD2: X=0.000, Y=0.000, Z=2.337, L =0.200
DRIF: D7: X=0.000, Y=0.000, Z=2.558, L =0.220
QUAD: QF3: X=0.000, Y=0.000, Z=2.738, L =0.180
DRIF: D1: X=0.000, Y=0.000, Z=2.918, L =0.180
SBEND: DB: X=-0.328, Y=0.000, Z=3.710, L =0.880, angle=0.785, e1=0.000, e2=0.000
DRIF: D2: X=-0.402, Y=0.000, Z=3.784, L =0.105
SEXT: SZ2: X=-0.459, Y=0.000, Z=3.841, L =0.080
DRIF: D3: X=-0.569, Y=0.000, Z=3.950, L =0.155
SEXT: SX2: X=-0.625, Y=0.000, Z=4.007, L =0.080
DRIF: D4: X=-0.675, Y=0.000, Z=4.056, L =0.070
QUAD: QF2: X=-0.802, Y=0.000, Z=4.184, L =0.180
DRIF: D4.2: X=-0.851, Y=0.000, Z=4.233, L =0.070
SEXT: SX1: X=-0.908, Y=0.000, Z=4.290, L =0.080
DRIF: D3.2: X=-1.018, Y=0.000, Z=4.399, L =0.155
SEXT: SZ1: X=-1.074, Y=0.000, Z=4.456, L =0.080
DRIF: D2.2: X=-1.148, Y=0.000, Z=4.530, L =0.105
SBEND: DB.2: X=-1.941, Y=0.000, Z=4.858, L =0.880, angle=0.785, e1=0.000, e2=0.000
DRIF: D1.2: X=-2.121, Y=0.000, Z=4.858, L =0.180
QUAD: QF1: X=-2.301, Y=0.000, Z=4.858, L =0.180
DRIF: D6: X=-2.421, Y=0.000, Z=4.858, L =0.120
QUAD: QD1: X=-2.601, Y=0.000, Z=4.858, L =0.180
DRIF: D5: X=-2.811, Y=0.000, Z=4.858, L =0.210
RFCA: CAV: X=-2.961, Y=0.000, Z=4.858, L =0.150
RFCA: CAV.2: X=-3.111, Y=0.000, Z=4.858, L =0.150
DRIF: D5.2: X=-3.321, Y=0.000, Z=4.858, L =0.210
QUAD: QD1.2: X=-3.501, Y=0.000, Z=4.858, L =0.180
DRIF: D6.2: X=-3.621, Y=0.000, Z=4.858, L =0.120
QUAD: QF1.2: X=-3.801, Y=0.000, Z=4.858, L =0.180
DRIF: D1.3: X=-3.981, Y=0.000, Z=4.858, L =0.180
SBEND: DB.3: X=-4.773, Y=0.000, Z=4.530, L =0.880, angle=0.785, e1=0.000, e2=0.000
DRIF: D2.3: X=-4.847, Y=0.000, Z=4.456, L =0.105
SEXT: SZ1.2: X=-4.904, Y=0.000, Z=4.399, L =0.080
DRIF: D3.3: X=-5.013, Y=0.000, Z=4.290, L =0.155
SEXT: SX1.2: X=-5.070, Y=0.000, Z=4.233, L =0.080
DRIF: D4.3: X=-5.119, Y=0.000, Z=4.184, L =0.070
QUAD: QF2.2: X=-5.247, Y=0.000, Z=4.056, L =0.180
DRIF: D4.4: X=-5.296, Y=0.000, Z=4.007, L =0.070
SEXT: SX2.2: X=-5.353, Y=0.000, Z=3.950, L =0.080
DRIF: D3.4: X=-5.462, Y=0.000, Z=3.841, L =0.155
SEXT: SZ2.2: X=-5.519, Y=0.000, Z=3.784, L =0.080
DRIF: D2.4: X=-5.593, Y=0.000, Z=3.710, L =0.105
SBEND: DB.4: X=-5.921, Y=0.000, Z=2.917, L =0.880, angle=0.785, e1=0.000, e2=0.000
DRIF: D1.4: X=-5.921, Y=0.000, Z=2.737, L =0.180
QUAD: QF3.2: X=-5.921, Y=0.000, Z=2.557, L =0.180
DRIF: D7.2: X=-5.921, Y=0.000, Z=2.337, L =0.220
QUAD: QD2.2: X=-5.921, Y=0.000, Z=2.137, L =0.200
DRIF: D8.2: X=-5.921, Y=0.000, Z=1.057, L =1.080
QUAD: QD3.2: X=-5.921, Y=0.000, Z=0.857, L =0.200
DRIF: D9.2: X=-5.921, Y=0.000, Z=0.757, L =0.100
QUAD: QF4.2: X=-5.921, Y=0.000, Z=0.557, L =0.200
DRIF: D10.2: X=-5.921, Y=0.000, Z=-0.000, L =0.557
DRIF: D10.3: X=-5.921, Y=0.000, Z=-0.558, L =0.557
QUAD: QF4.3: X=-5.921, Y=0.000, Z=-0.758, L =0.200
DRIF: D9.3: X=-5.921, Y=0.000, Z=-0.858, L =0.100
QUAD: QD3.3: X=-5.921, Y=0.000, Z=-1.058, L =0.200
DRIF: D8.3: X=-5.921, Y=0.000, Z=-2.138, L =1.080
QUAD: QD2.3: X=-5.921, Y=0.000, Z=-2.338, L =0.200
DRIF: D7.3: X=-5.921, Y=0.000, Z=-2.558, L =0.220
QUAD: QF3.3: X=-5.921, Y=0.000, Z=-2.738, L =0.180
DRIF: D1.5: X=-5.921, Y=0.000, Z=-2.918, L =0.180
SBEND: DB.5: X=-5.593, Y=0.000, Z=-3.710, L =0.880, angle=0.785, e1=0.000, e2=0.000
DRIF: D2.5: X=-5.519, Y=0.000, Z=-3.784, L =0.105
SEXT: SZ2.3: X=-5.462, Y=0.000, Z=-3.841, L =0.080
DRIF: D3.5: X=-5.353, Y=0.000, Z=-3.950, L =0.155
SEXT: SX2.3: X=-5.296, Y=0.000, Z=-4.007, L =0.080
DRIF: D4.5: X=-5.247, Y=0.000, Z=-4.056, L =0.070
QUAD: QF2.3: X=-5.119, Y=0.000, Z=-4.184, L =0.180
DRIF: D4.6: X=-5.070, Y=0.000, Z=-4.233, L =0.070
SEXT: SX1.3: X=-5.013, Y=0.000, Z=-4.290, L =0.080
DRIF: D3.6: X=-4.904, Y=0.000, Z=-4.399, L =0.155
SEXT: SZ1.3: X=-4.847, Y=0.000, Z=-4.456, L =0.080
DRIF: D2.6: X=-4.773, Y=0.000, Z=-4.530, L =0.105
SBEND: DB.6: X=-3.981, Y=0.000, Z=-4.858, L =0.880, angle=0.785, e1=0.000, e2=0.000
DRIF: D1.6: X=-3.801, Y=0.000, Z=-4.858, L =0.180
QUAD: QF1.3: X=-3.621, Y=0.000, Z=-4.858, L =0.180
DRIF: D6.3: X=-3.501, Y=0.000, Z=-4.858, L =0.120
QUAD: QD1.3: X=-3.321, Y=0.000, Z=-4.858, L =0.180
DRIF: D5.3: X=-3.111, Y=0.000, Z=-4.858, L =0.210
RFCA: CAV.3: X=-2.961, Y=0.000, Z=-4.858, L =0.150
RFCA: CAV.4: X=-2.811, Y=0.000, Z=-4.858, L =0.150
DRIF: D5.4: X=-2.601, Y=0.000, Z=-4.858, L =0.210
QUAD: QD1.4: X=-2.421, Y=0.000, Z=-4.858, L =0.180
DRIF: D6.4: X=-2.301, Y=0.000, Z=-4.858, L =0.120
QUAD: QF1.4: X=-2.121, Y=0.000, Z=-4.858, L =0.180
DRIF: D1.7: X=-1.941, Y=0.000, Z=-4.858, L =0.180
SBEND: DB.7: X=-1.148, Y=0.000, Z=-4.530, L =0.880, angle=0.785, e1=0.000, e2=0.000
DRIF: D2.7: X=-1.074, Y=0.000, Z=-4.456, L =0.105
SEXT: SZ1.4: X=-1.018, Y=0.000, Z=-4.399, L =0.080
DRIF: D3.7: X=-0.908, Y=0.000, Z=-4.290, L =0.155
SEXT: SX1.4: X=-0.851, Y=0.000, Z=-4.233, L =0.080
DRIF: D4.7: X=-0.802, Y=0.000, Z=-4.184, L =0.070
QUAD: QF2.4: X=-0.675, Y=0.000, Z=-4.056, L =0.180
DRIF: D4.8: X=-0.625, Y=0.000, Z=-4.007, L =0.070
SEXT: SX2.4: X=-0.569, Y=0.000, Z=-3.950, L =0.080
DRIF: D3.8: X=-0.459, Y=0.000, Z=-3.841, L =0.155
SEXT: SZ2.4: X=-0.402, Y=0.000, Z=-3.784, L =0.080
DRIF: D2.8: X=-0.328, Y=0.000, Z=-3.710, L =0.105
SBEND: DB.8: X=0.000, Y=0.000, Z=-2.917, L =0.880, angle=0.785, e1=0.000, e2=0.000
DRIF: D1.8: X=0.000, Y=0.000, Z=-2.737, L =0.180
QUAD: QF3.4: X=0.000, Y=0.000, Z=-2.557, L =0.180
DRIF: D7.4: X=0.000, Y=0.000, Z=-2.337, L =0.220
QUAD: QD2.4: X=0.000, Y=0.000, Z=-2.137, L =0.200
DRIF: D8.4: X=0.000, Y=0.000, Z=-1.057, L =1.080
QUAD: QD3.4: X=0.000, Y=0.000, Z=-0.857, L =0.200
DRIF: D9.4: X=0.000, Y=0.000, Z=-0.757, L =0.100
QUAD: QF4.4: X=0.000, Y=0.000, Z=-0.557, L =0.200
DRIF: D10.4: X=-0.000, Y=0.000, Z=0.000, L =0.557

assy

<cadquery.assembly.Assembly at 0x76d77dbf01a0>

svg = "results/layout2d.svg"
exporters.export(assy.toCompound(), svg, opt={"width": 1000, "height": 700,
                                              "projectionDir": (0, 1, 0),
                                              "marginLeft": 10, "marginRight": 10, "showHidden": False})
SVG(svg)

svg

svg = "results/layout3d.svg"
exporters.export(assy.toCompound(), svg, opt={"width": 1000, "height": 500,
                                              "projectionDir": (1, 1, 1), "showHidden": False,
                                              "focus": 40000})
SVG(svg)

svg

assy.save("results/layout.step");

wp = cq.Workplane("ZX").add(assy.toCompound()) #.section()

exporters.exportDXF(wp, 'results/layout.dxf')

pwd

'/data/shared/examples/Elegant/CadQuery'

!jupyter nbconvert --to HTML layout.ipynb

[NbConvertApp] Converting notebook layout.ipynb to HTML
[NbConvertApp] WARNING | Alternative text is missing on 6 image(s).
[NbConvertApp] Writing 2380929 bytes to layout.html

Разработка и применение программного обеспечения в физических исследованиях

Accelerator beamline layout in CadQuery
